3/4”~2” Ultra High Flow Pressure Regulators for Bulk gas
Material: Body: ASTM A351, CF3M / A479 SS316L
Diaphragm: 17-7 PH SST
Seat: PolyA11 / CTFE / V-TFE
Typical Application
· For "electronic grade" and other ultra high purity fluid
· For either gaseous or liquid service
· For bulk gas system
Features
· High Flow Capacity
· All SST welted trim materials
· Electric-polished
· Tube-end connections (for orbital welding)
· High Pressure Capability
· In-line maintenance

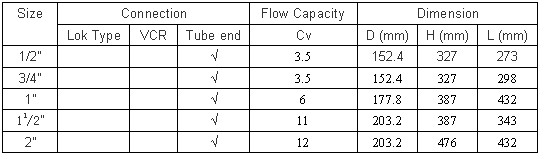

Specification
· Maximum Inlet Pressure: up to 3000 psi
· Outlet Pressure Range: 5~300 psi
· Operating temperature: -20oF to +400 oF
· Helium leakage test (In board): 1x10-9 scc/sec
· Inner surface: EP (15 Ra / 10 Ra)
· 3" & 4" Size available
|
