Application
Oil,chenical industry,shipbuilding,aerospace,military products,electric power,iron and steel,fire sprinkler,electroplating coating,gas fuel,environmental protection equipment,blowing dust,analytical instruments,textile printing and dyeing,HVAC,cleaning equipment,garden sprinkler irrigation,food industry,and other control systems.
Main characteristics:
Structure: Pilot operated.
Piston and Seats: Delrin.
NPT threaded connection.
Control mode: N.C, N.O.
Connection way: Box thread, Flange
Electrical data:
Voltage: AC220V、DC24V、AC36V、AC110V
power：DC：13W；AC：22VA
Voltage tolerance:±10%
Electrical connection: Connecting box type (popular type),
electric cable lead wire type (explosion-proof)
Protection class: German standard DIN43650A(IP65)
Other functions: E explosion-proof (explosion-proof rank Ex I/IIT4)

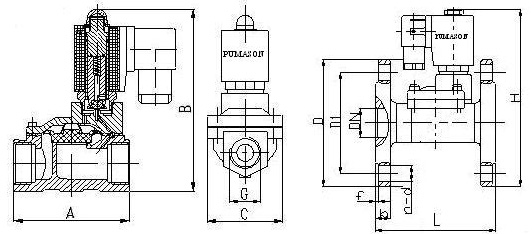

Figure Structure：
|
